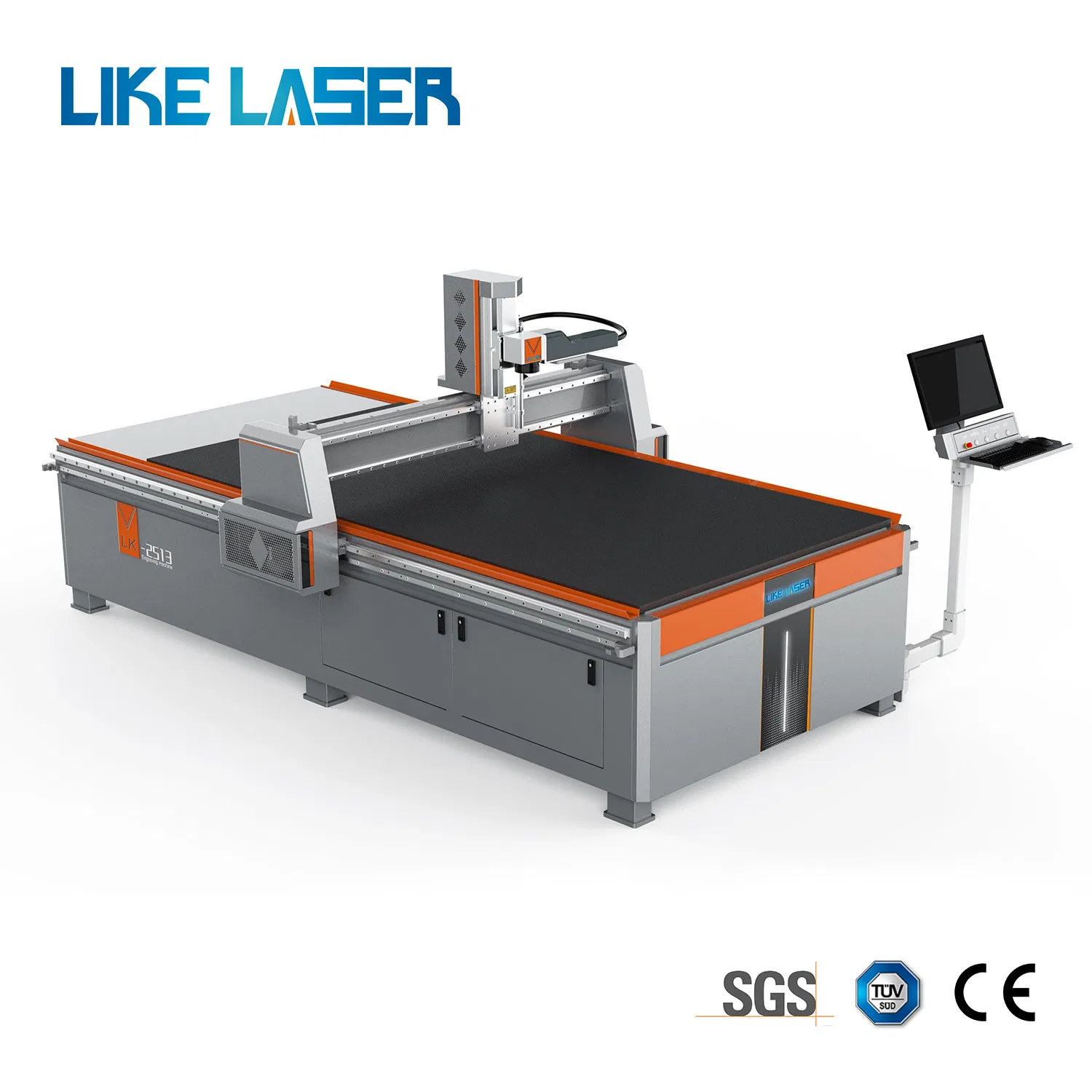

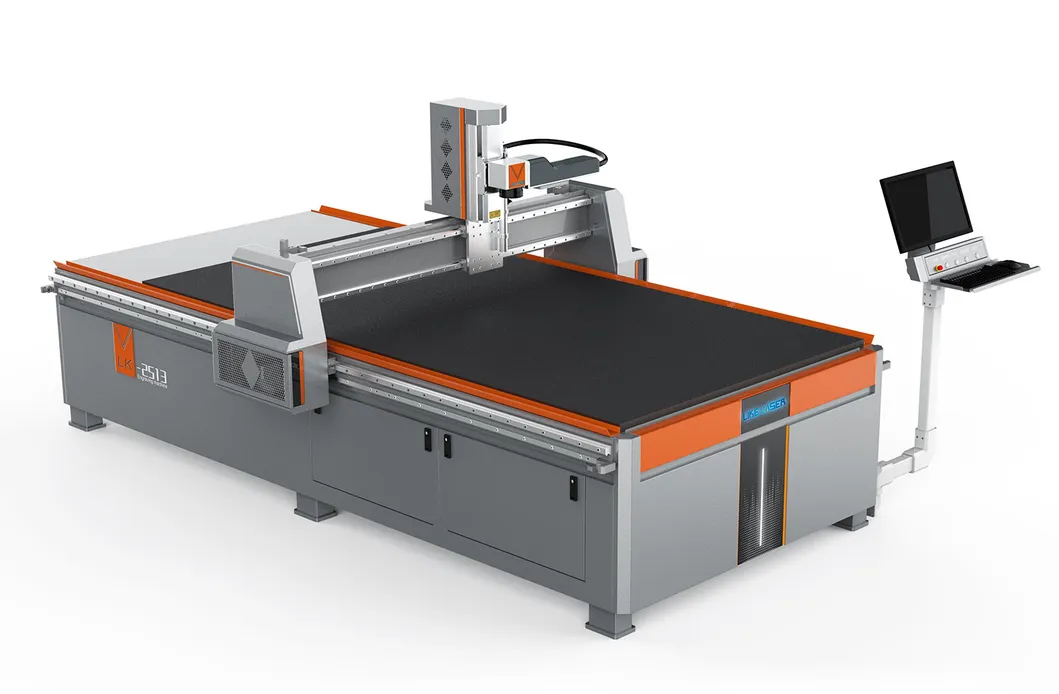

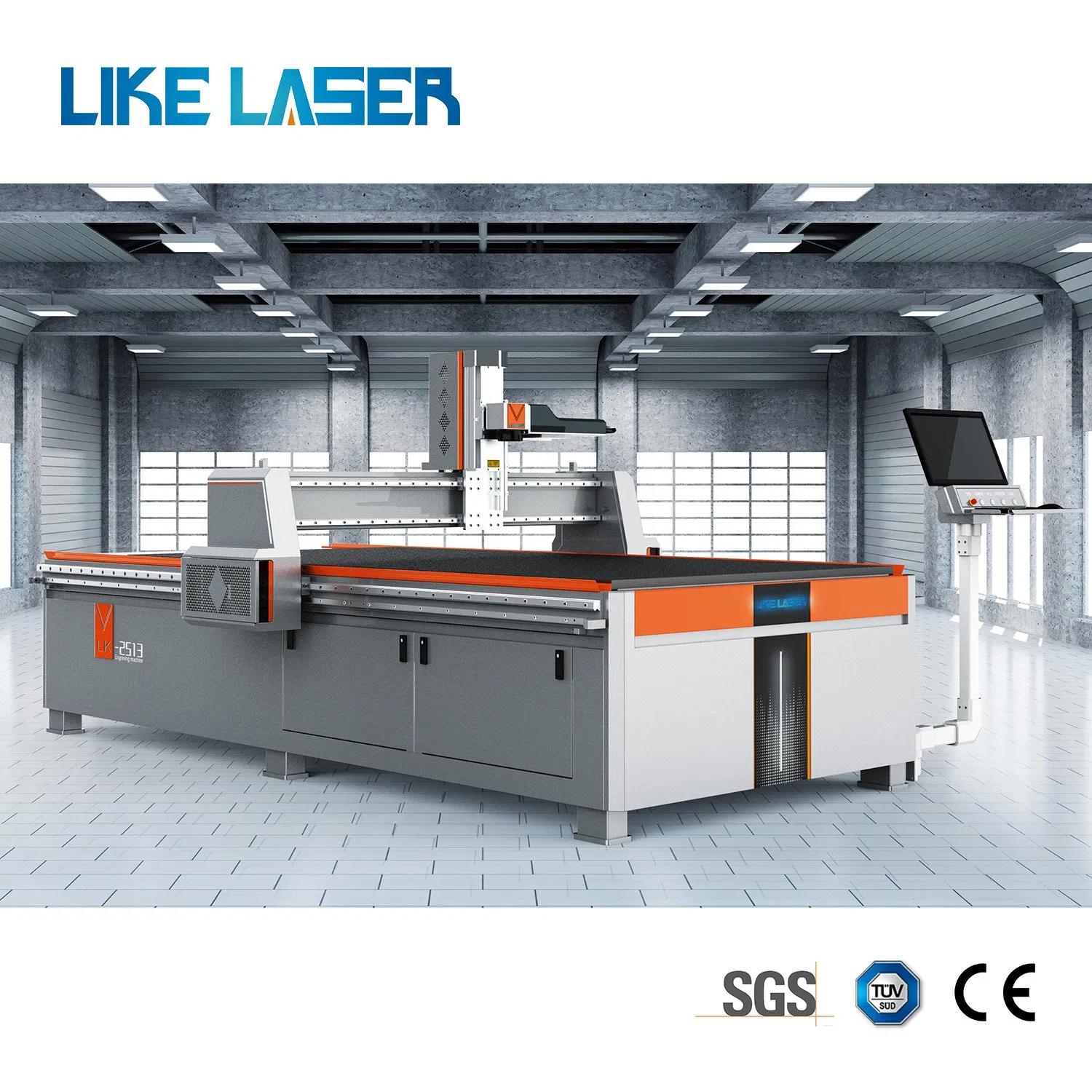

1500mm*3000mm 1390 Laser Engraving Machine for Etching Decorative Surface

Basic Info.

Model NO.H2-1326

TypeOscillating Mirror, Optical Fiber Laser Marking Machine

ObjectMetal

UsageMarking, Lettering, Corrosion, Hollowed-out

CertificationISO9001: 2000, CE

Laser Power100W

Cooling SystemAir Cooling

Precision0.0006mm

Laser Lifetime100,000h

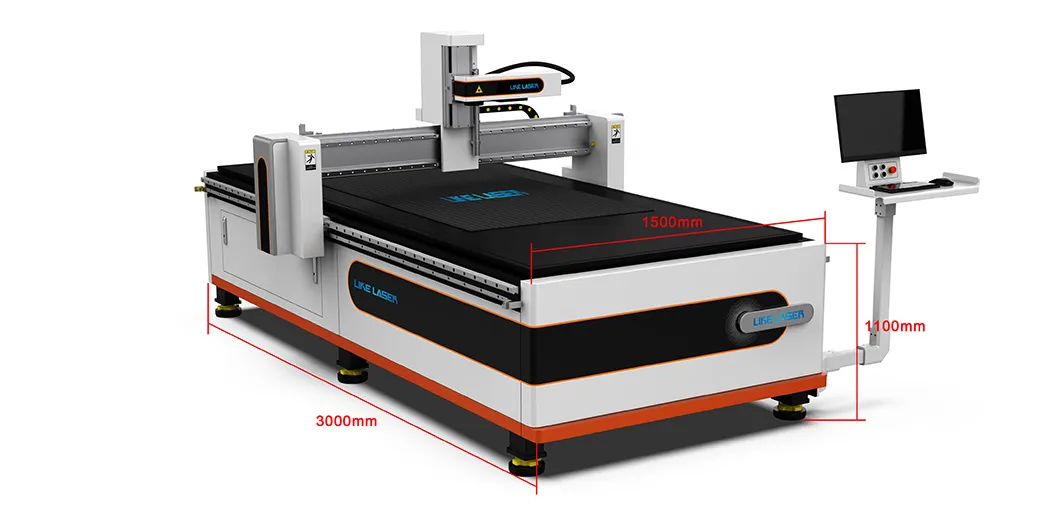

Specification1500mm*3000mm*1100mm

Product Overview

1500MM*3000MM 1390 laser engraving machine for Etching decorative surface.

Applications

Removing coat for bathroom mirror, kitchen mirror, building mirror, wall mirror, etc.
Remove glass Low-E (conductive film) and carve Low-E into complex geometry.
Surface marking of stainless steel plate / metal decorative plate.

Available Models

Model 1800mm * 1200mm

Model 21300mm * 2500mm

Model 31500mm * 3000mm

Core Advantages

Excellent beam quality: Smaller laser spot and divergence angle compared to traditional machines.
Low Operation Cost: High turnover ratio between electricity and laser; power consumption less than 500W.
Maintenance-free: No maintenance required for the laser source; no lens cleaning/adjustment needed.
Long Service Life: Pumping source lasts up to 100,000 working hours.
High Speed: 2-3 times faster than traditional laser marking systems.
Robust Design: Compact structure suitable for severe environments like vibration and high temperatures.

Technical Parameters

Wavelength	1064nm
Work Table	Flannelette
Supported Format	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc.
Marking Depth	≥0.2mm (material dependent)
Linear Speed	≤7000mm/s
Min. Line Width	0.01mm
Laser Lifetime	100,000 working hours
Cooling Mode	Air Cooling
Power Supply	AC110V/AC220V / 50Hz / 1KVA
Operation System	Windows XP, Windows 7 (32 or 64)

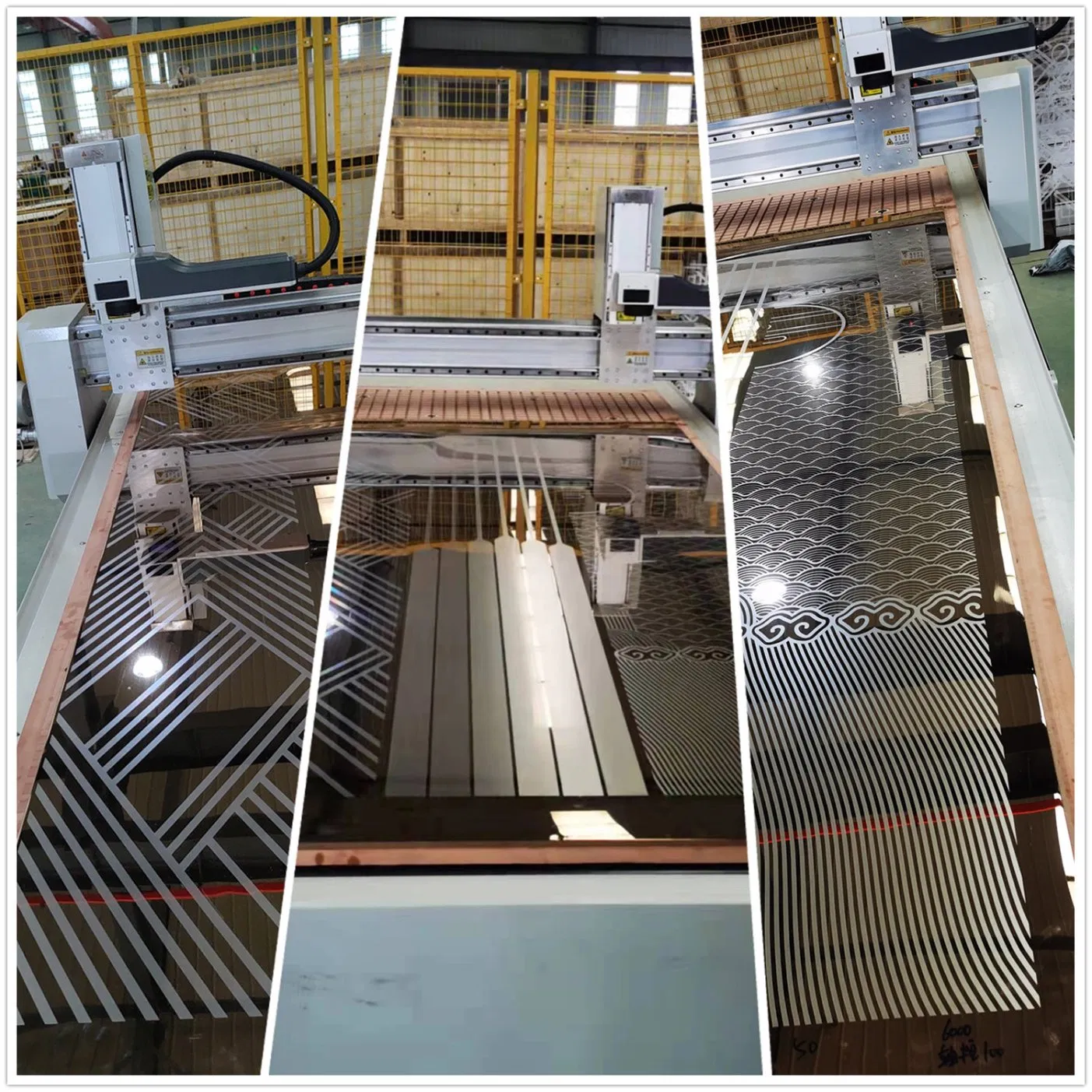

Sample Show

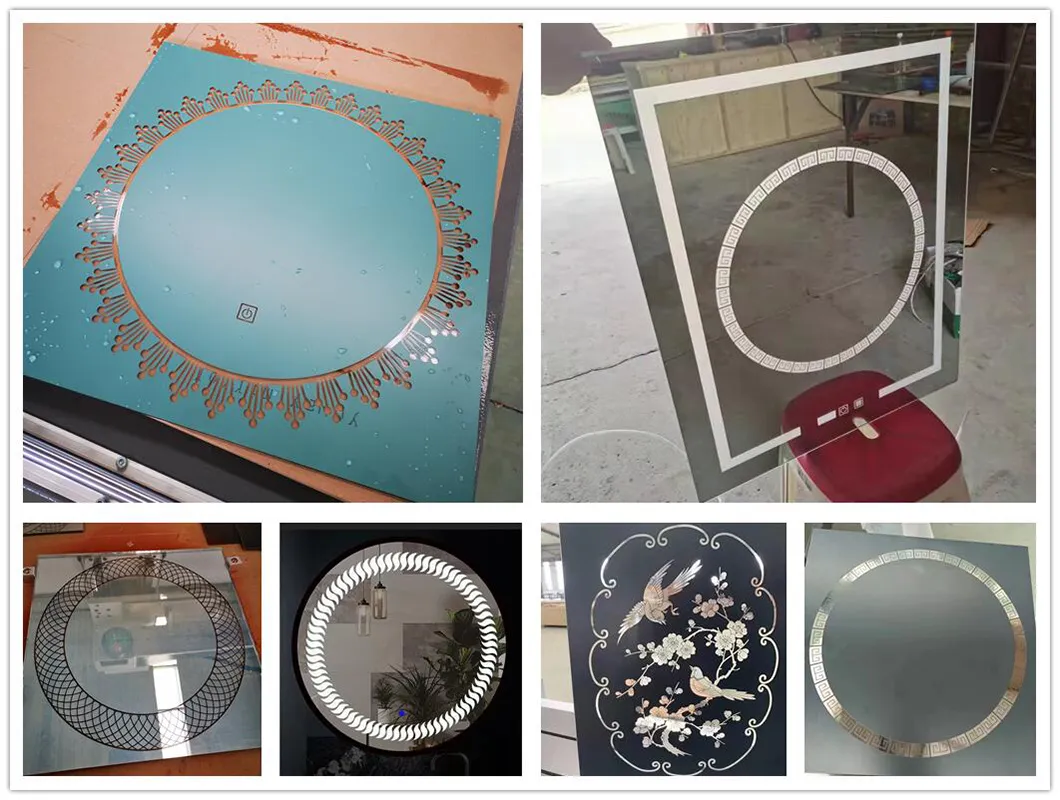

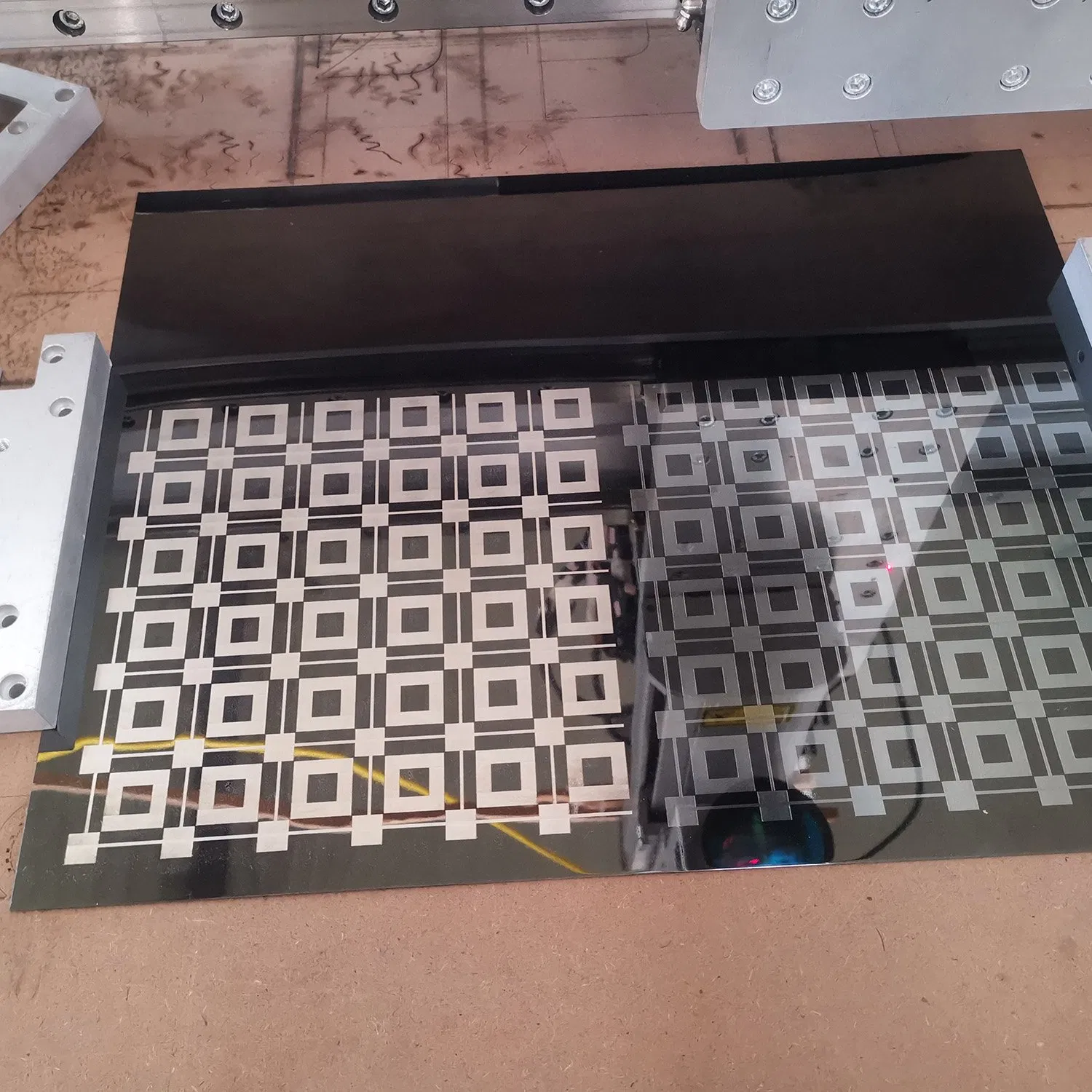

Mirror Coat Removing

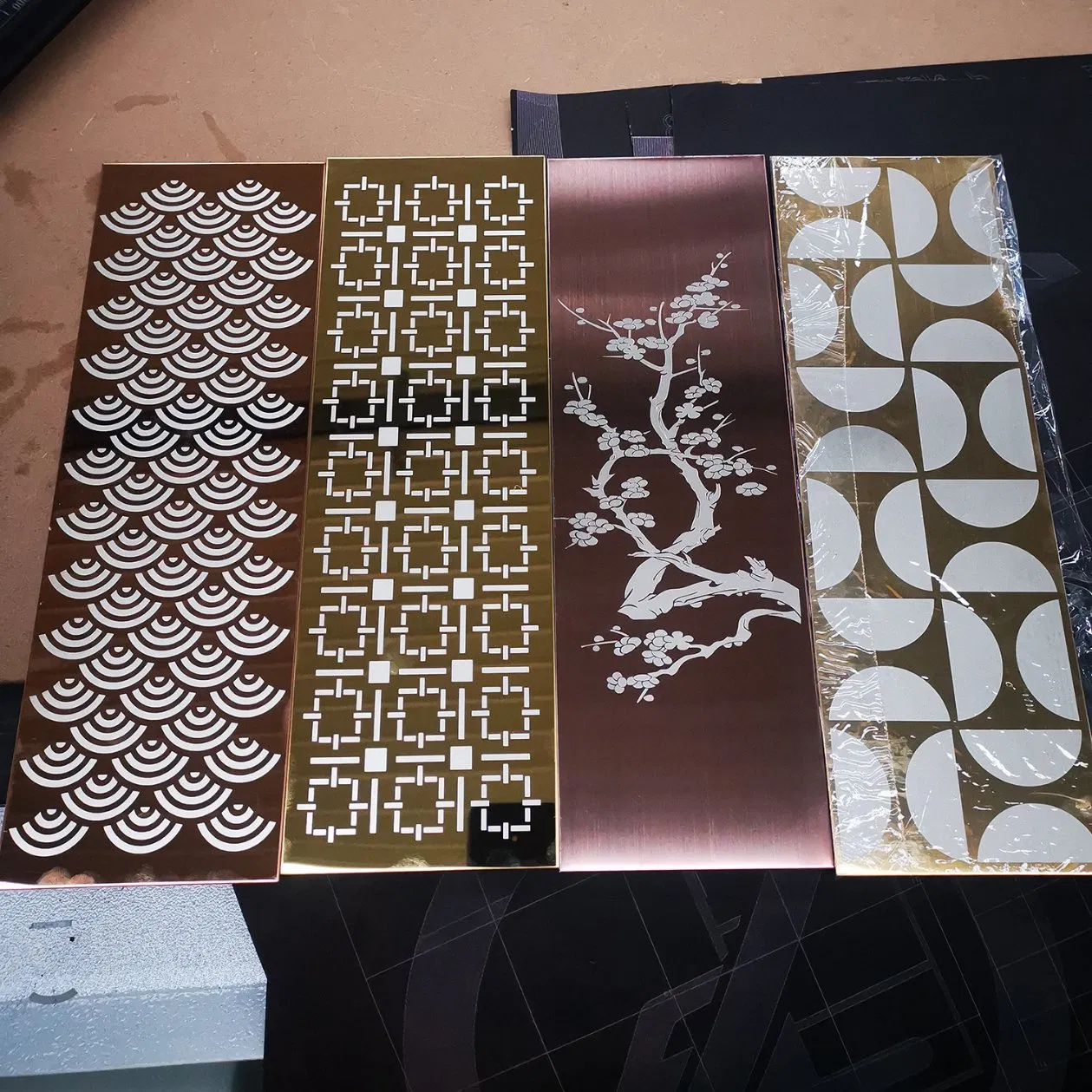

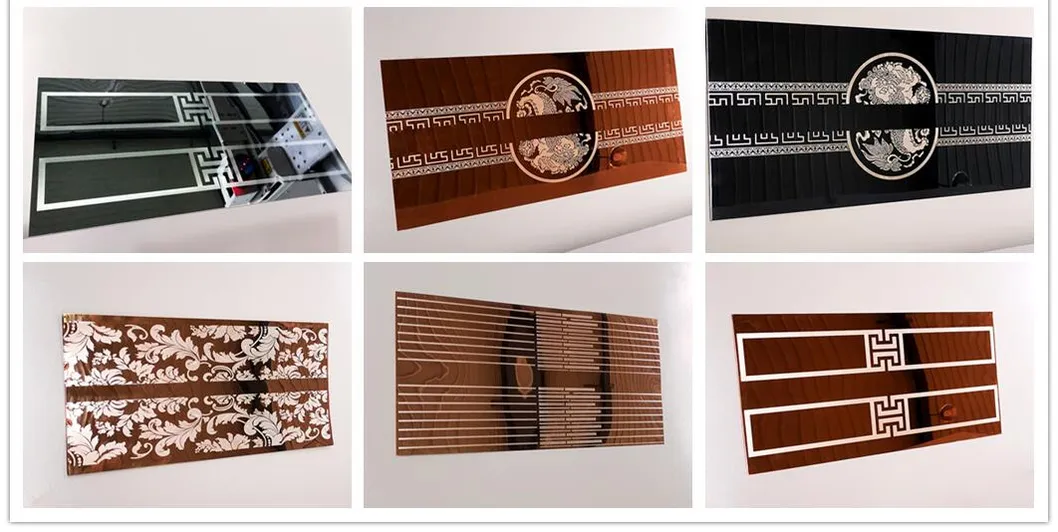

Stainless Steel Decorative Plate

Our Services

Quality Guarantee: One year guarantee period for product quality.
Maintenance: Lifelong maintenance and spare parts supply.
Training: Free training for machine installation and operation.
Sampling: Free sample removing or marking for customer-provided materials.

Packaging & Global Presence

Foam + Wooden Box For Safer Packing

Frequently Asked Questions

1. What materials can this machine process? This fiber laser marking machine is primarily designed for metal materials, stainless steel decorative plates, and various types of glass mirrors (removing coatings).

2. How long does the laser source last? The fiber laser source has an exceptional working life of up to 100,000 hours, ensuring long-term reliability.

3. Does the machine require complex maintenance? No, the machine features a maintenance-free operation. It uses an air-cooling system and does not require frequent lens cleaning or technical adjustments.

4. What is the power consumption of the equipment? The machine is very energy-efficient, with a total power consumption of less than 500W, which is about 1/10th of traditional light-pumping laser systems.

5. Which computer systems and file formats are supported? The system supports Windows XP and Windows 7 (32/64 bit). It can process multiple formats including AI, DXF, PLT, BMP, JPG, and GIF.

6. Is training provided for new operators? Yes, we provide free training for machine installation and staff operation to ensure you can utilize the machine's full potential.
