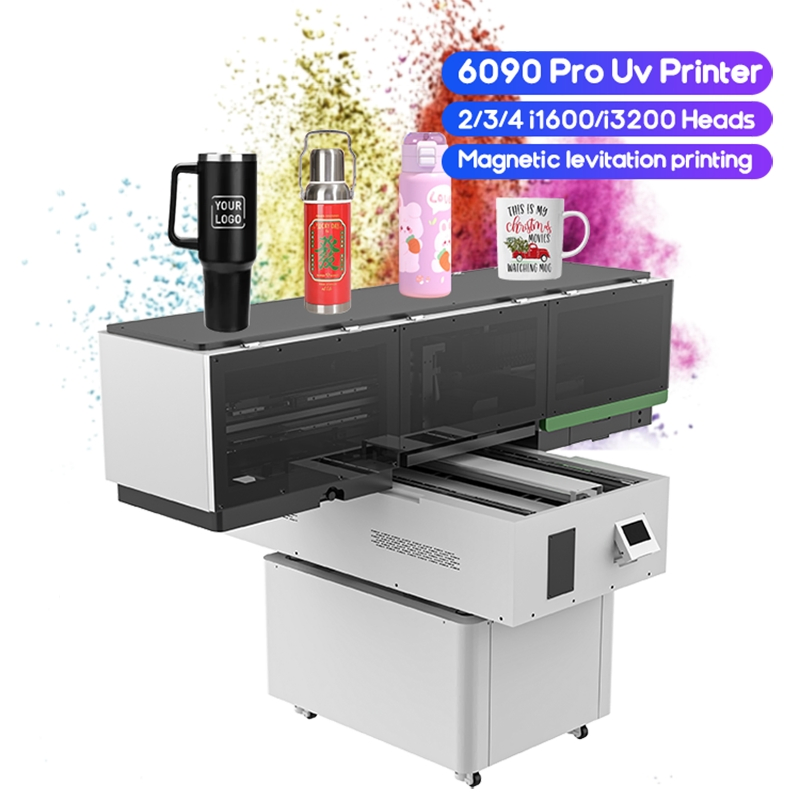

60cm I3200 UV Flatbed Printer with Triple Printheads – Engineered for Precision and Ease in Industrial UV Printing

1 / 5

60cm I3200 UV Flatbed Printer with Triple Printheads – Engineered for Precision and Ease in Industrial UV Printing

Customization:	Available
After-sales Service:	Online Technical Support
Warranty:	1 Year

Send Inquiry

Product Description

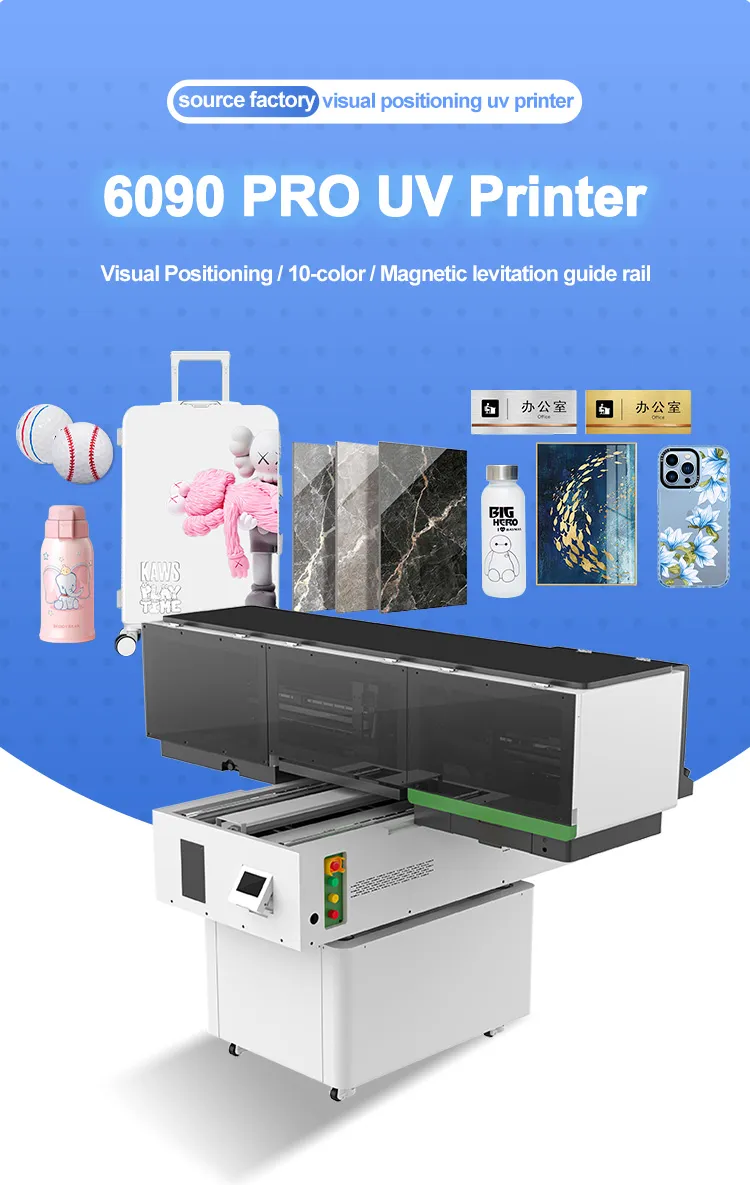

Direct Sale 10 Color I3200 A1 6090 Visual Positioning Large Format 3D UV LED Flatbed Printer Machine

Basic Information

Model NO.	GS6090 PRO
Plate Type	Flat-Bed Cylinder Press
Structure	Platen Press
Color & Page	Multi-Colour Printing Press
Print Head	I1600 / I3200
Printing Speed	8-20 Sqm/H
Printing Thickness	0-250mm
Ink Type	UV Ink
Ink Color	CMYK + W + V + LC + LM + G + O
Print Interface	Gigabit Ethernet Port
System Support	Win7 / Win10 / Win11
Voltage	AC110V/220V, 50Hz/60Hz
Rated Power	250W
Gross Weight	450kg
Certification	CE / RoHS

Machine Configuration & Features

🔵

10-Color Ink System: Supports professional color transitions including LC, LM, G, and O.

🔵

Visual Positioning: Advanced camera system for precise printing alignment.

🔵

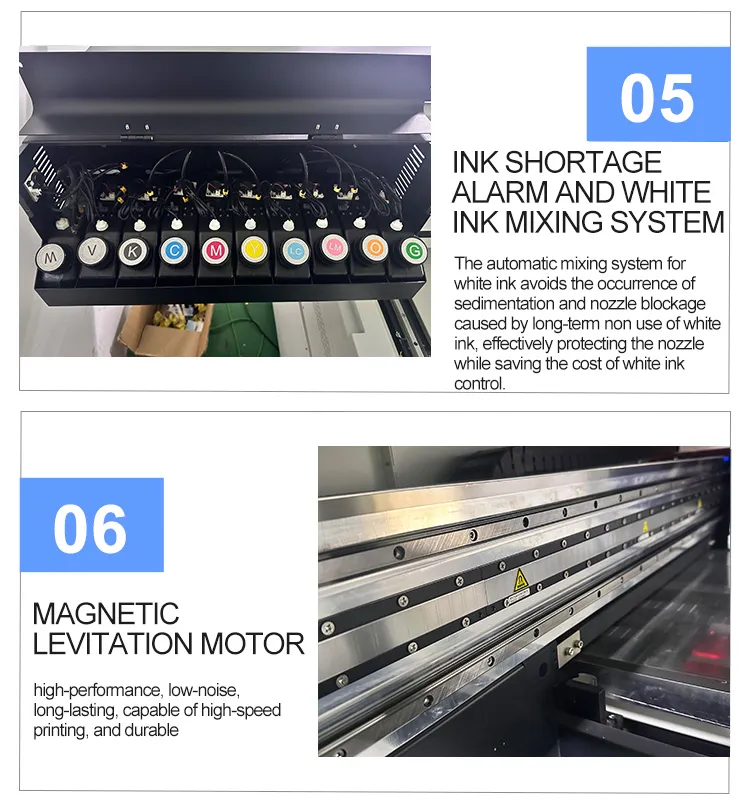

Magnetic Levitation: Ensures smooth and high-speed carriage movement.

🔵

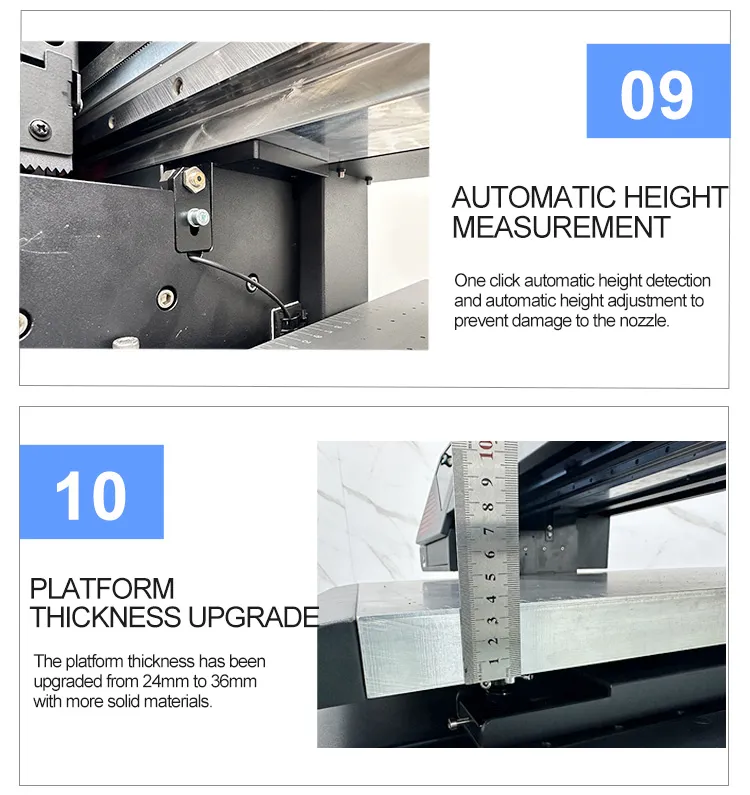

Automatic Height Measurement: Sensors detect media thickness (up to 250mm) automatically.

🔵

Negative Pressure Cleaning: Maintains stable ink flow and prevents nozzle clogging.

🔵

Platform Suction: High-precision vacuum platform with scale lines for media stability.

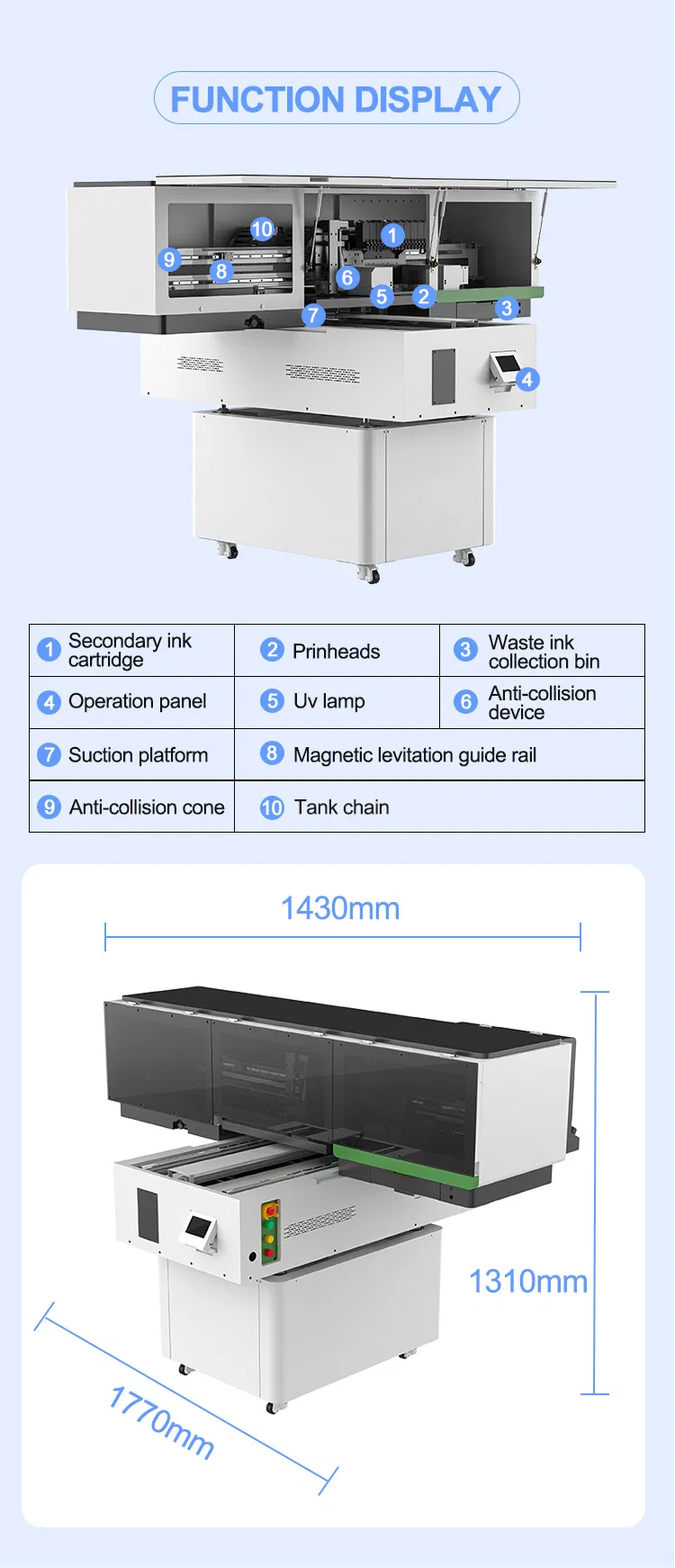

Product Display & Details

Frequently Asked Questions

1. What materials can the GS6090 PRO print on?

The printer is highly versatile and can print on Phone cases, Acrylic, Signage, Glass, Stainless steel, Ceramic tiles, KT boards, Leather, Handicrafts, and even Wine bottles.

2. What is the maximum printing thickness supported?

This model supports a wide range of media thickness, from 0mm up to 250mm, with an automatic height measurement system for precision.

3. Does it support special ink configurations like White and Varnish?

Yes, it features a 10-color ink system supporting CMYK + White + Varnish + LC + LM + Orange + Green for vibrant colors and 3D textured effects.

4. What type of printheads are used in this machine?

The machine is equipped with high-performance I1600 or I3200 industrial printheads, offering a balance of speed and high-resolution output.

5. What are the maintenance features for the nozzles?

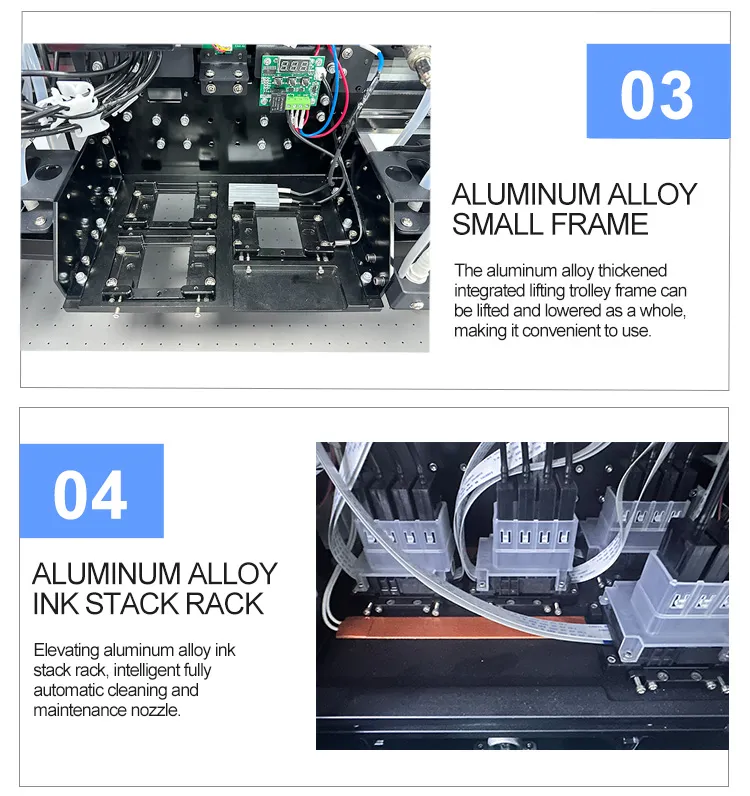

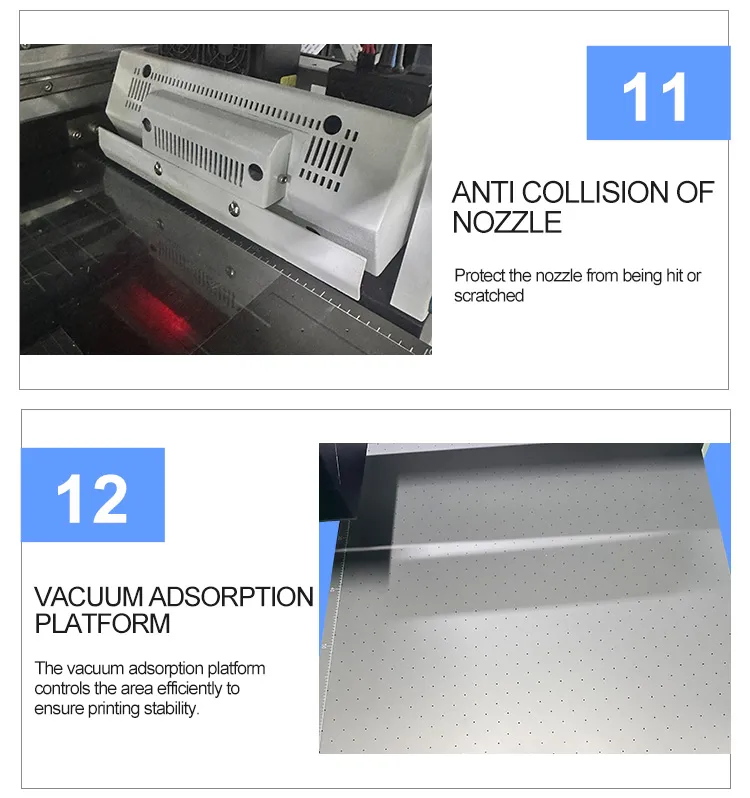

The printer includes a printhead anti-collision device, an integrated auto-lifting ink station, and a one-key automatic cleaning function to ensure nozzle longevity.

6. Is the printing platform stable for heavy media?

Absolutely. It uses a CNC machined aluminum alloy integrated beam and a vacuum suction platform to ensure the media stays perfectly flat and stable during the printing process.
